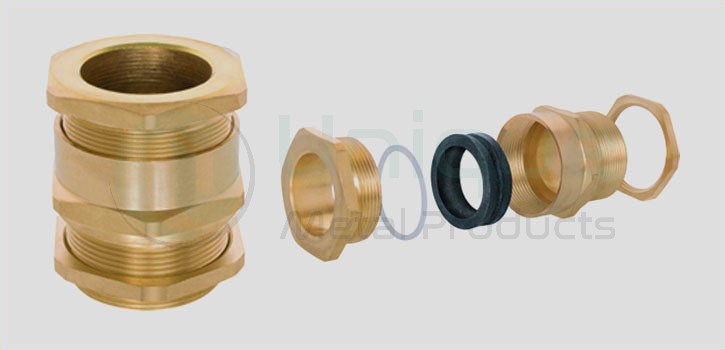

A1/A2 Type Cable Glands
Size |
20 mm to 90 mm |
|---|---|
Standard |
EN 50262 : 1999 |
Application |
Outdoor or Indoor for use with all types of Unarmoured Cable |
Function |
Provide Seal on Outer Sheath of the Unarmoured Cable |
Material |
Brass BS 2874 CZ121 Pb3 |
Optional Threads |
METRIC, NPT, BSP, PG or as specified |
Finish |
Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temperature |
Standard seals -200 C to +800 C |
Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
Technical Data
Size
| Thread Size 'C' |
Minimum Length of Thread 'D' |
Cable Range |
||
|---|---|---|---|---|---|
MM |
INCH |
MAX 'A' |
MAX 'B' |
||
A2 20S |
20 |
3/4 |
15 |
10.80 |
8.80 |
A2 20L |
20 |
3/4 |
15 |
14.70 |
11.40 |
A2 25S |
25 |
1 |
15 |
16.00 |
13.00 |
A2 25L |
25 |
1 |
15 |
20.30 |
17.30 |
A2 32S |
32 |
1.1/4 |
15 |
23.00 |
20.00 |
A2 32L |
32 |
1.1/4 |
15 |
26.20 |
24.20 |
A2 40S |
40 |
1.1/2 |
20 |
29.00 |
26.00 |
A2 40L |
40 |
1.1/2 |
20 |
34.00 |
29.50 |
A2 50S |
50 |
2 |
20 |
41.00 |
33.00 |
A2 50L |
50 |
2 |
20 |
45.00 |
38.00 |
A2 63S |
63 |
2.1/2 |
20 |
51.50 |
44.00 |
A2 63L |
63 |
2.1/2 |
20 |
56.50 |
50.00 |
A2 75S |
75 |
3 |
20 |
63.20 |
56.00 |
A2 75L |
75 |
3 |
20 |
68.50 |
62.00 |
