BW Two Part Cable Glands
Size |
20 mm to 90 mm |
|---|---|
Standard |
BS 6121 |
Application |
Dry Indoor, for use with all types of SWA Cable |
Function |
Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
Material |
Brass BS 2874 CZ121 Pb3 |
Optional Threads |
METRIC, NPT, BSP, PG or as specified |
Finish |
Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temperature |
-800 C to +3000 C |
Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Technical Data
Size |
Thread Size 'C' |
Minimum Length of Thread 'D' |
Cable Range |
||
|---|---|---|---|---|---|
MM |
INCH |
MAX 'A' |
MAX 'B' |
||
BW 20S |
20 |
3/4 |
10 |
13.00 |
15.50 |
BW 20L |
20 |
3/4 |
10 |
14.00 |
18.50 |
BW 25L |
25 |
1 |
10 |
20.50 |
26.00 |
BW 32L |
32 |
1.1/4 |
10 |
27.00 |
33.90 |
BW 40L |
40 |
1.1/2 |
15 |
33.00 |
41.50 |
BW 50S |
50 |
2 |
15 |
38.50 |
47.00 |
BW 50L |
50 |
2 |
15 |
44.00 |
52.00 |
BW 63S |
63 |
2.1/2 |
15 |
51.00 |
59.20 |
BW 63L |
63 |
2.1/2 |
15 |
56.50 |
65.50 |
BW 75S |
75 |
3 |
15 |
63.00 |
74.00 |
BW 75L |
75 |
3 |
15 |
68.50 |
79.50 |
BW 90L |
90 |
3.1/2 |
20 |
80.50 |
91.00 |

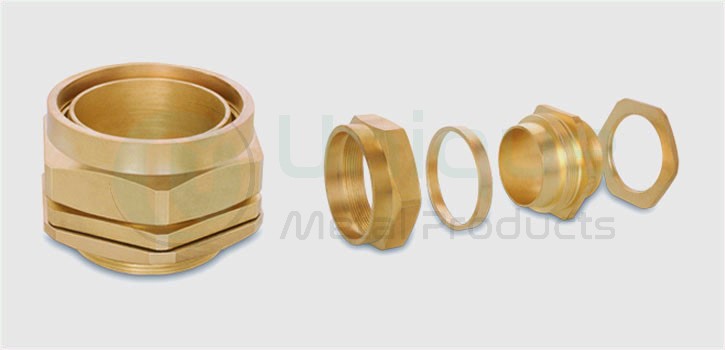

BW Four Part Cable Glands
Size |
20 mm to 90 mm S & L |
|---|---|
Standard |
BS 6121 |
Application |
Dry Indoor, for use with all types of SWA Cable |
Function |
Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire. |
Material |
Brass BS 2874 CZ121 Pb3 |
Optional Threads |
METRIC, NPT, BSP, PG or as specified |
Finish |
Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temperature |
-800 C to +3000 C |
Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Technical Data
Size |
Thread |
Length |
A |
B |
A/F |
A/C |
|---|---|---|---|---|---|---|
20S |
M20 |
10.00 |
13.00 |
18.00 |
23.50 |
26.00 |
20L |
M20 |
10.00 |
14.00 |
21.00 |
25.00 |
28.00 |
25S |
M25 |
10.00 |
18.00 |
24.00 |
31.00 |
35.50 |
25L |
M25 |
10.00 |
20.50 |
27.00 |
33.00 |
37.00 |
32S |
M32 |
10.00 |
27.00 |
33.50 |
40.50 |
45.50 |
32L |
M32 |
10.00 |
27.00 |
33.50 |
40.50 |
45.50 |
40S |
M40 |
13.00 |
31.50 |
39.50 |
45.50 |
50.50 |
40L |
M40 |
13.00 |
33.00 |
41.50 |
49.00 |
55.00 |
50S |
M50 |
13.00 |
39.50 |
48.50 |
56.50 |
63.50 |
50L |
M50 |
13.00 |
44.50 |
54.50 |
62.50 |
70.50 |
63S |
M63 |
14.00 |
50.20 |
59.20 |
68.80 |
77.00 |
63L |
M63 |
13.50 |
56.50 |
65.50 |
76.00 |
86.00 |
75S |
M75 |
15.00 |
63.50 |
72.00 |
84.00 |
94.50 |
75L |
M75 |
15.00 |
69.50 |
78.50 |
90.00 |
101.00 |
90S |
M90 |
20.00 |
76.00 |
85.00 |
100.00 |
111.20 |
90L |
M90 |
18.00 |
78.40 |
90.50 |
103.00 |
115.00 |
