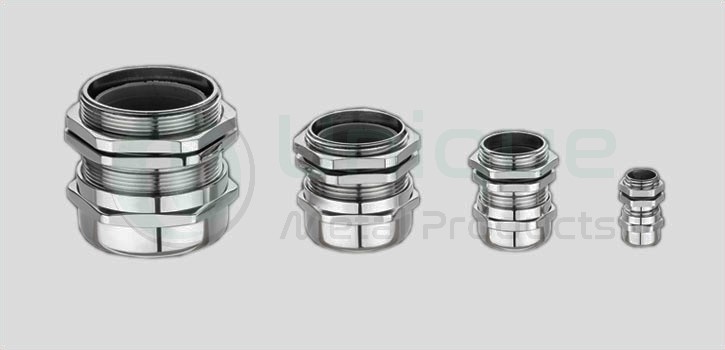

PG & Metric Cable Gland (IP-68)
These Glands Are Used Where Protection Against Dust, Water, Strain & Vibration Is Required. This Is Also Called As Liquid Tight Glands. These Glands Are Used Specially In Measuring & Controlling Instruments, Machineries, System Manufacturing, Panels, etc.
| SIZE | PG 7 TO PG 48 & M12 TO M63 |
| APPLICATION | OUTDOOR OR INDOOR FOR USE WITH ALL TYPES OF UNARMORED CABLE |
| FUNCTION | PROVIDE SEAL ON OUTER SHEATH OF THE UNARMORED CABLE |
| INGRESS PROTECTION | IP68 |
| MATERIAL | NICKEL PLATED BRASS |
| FINISH | CHROME FINISH, BRASS FINISH, NICKEL FINISH OR AS SPECIFIED |
| THREAD | PG & METRIC (ALSO AVAILABLE NPT) |
| ALTERNATE THREAD | NPT , BSC (ET) , BSP. |
| SEALS | NEOPRENE / NITRILE |
| INSERT | POLYAMIDE NYLON 6 |
| OPERATING TEMPERATURE | -20 C TO +100 |
| RELATED ACCESSORIES | REDUCER, ADAPTORS, BLANK PLUGS, SHROUD, LOCKNUT. |
Technical Data
SIZE |
A/F |
A/C |
C Thread |
D Thread Length |
H Rubber ID |
Clamping range |
|---|---|---|---|---|---|---|
PG 7 |
14.00 |
15.50 |
PG 7 |
7.00 |
6.20 |
3 – 6 |
PG 9 |
17.00 |
19.00 |
PG 9 |
8.00 |
8.20 |
4 – 8 |
PG 11 |
20.00 |
22.00 |
PG 11 |
8.00 |
10.00 |
5 – 10 |
PG 13.5 |
22.00 |
24.00 |
PG 13.5 |
10.00 |
12.10 |
6 – 12 |
PG 16 |
24.00 |
26.50 |
PG 16 |
10.00 |
14.10 |
10 – 14 |
PG 21 |
30.00 |
33.00 |
PG 21 |
10.00 |
18.50 |
13 – 18 |
PG 29 |
40.00 |
44.00 |
PG 29 |
10.00 |
25.20 |
18 – 25 |
PG 36 |
50.00 |
55.00 |
PG 36 |
10.00 |
32.00 |
24 – 31.5 |
PG 42 |
57.00 |
62.00 |
PG 42 |
12.00 |
38.00 |
30 – 37.5 |
PG 48 |
64.00 |
72.00 |
PG 48 |
12.00 |
43.50 |
34 – 43 |
M 12 |
14.00 |
15.50 |
M12 x 1.5 |
7.00 |
6.20 |
3 – 6 |
M 16 |
17.50 |
19.00 |
M16 x 1.5 |
8.00 |
8.20 |
5 – 8 |
M 20 |
22.00 |
24.00 |
M20 x 1.5 |
10.00 |
12.10 |
6 – 12 |
M 25 |
27.00 |
29.50 |
M25 x 1.5 |
10.00 |
16.00 |
11 – 15.5 |
M 32 |
34.00 |
37.00 |
M32 x 1.5 |
10.00 |
20.70 |
14 – 20.5 |
M 40 |
43.00 |
47.50 |
M40 x 1.5 |
10.00 |
26.00 |
19 – 26 |
M 50 |
55.00 |
61.00 |
M50 x 1.5 |
10.00 |
35.00 |
24 – 34 |
M 63 |
65.00 |
72.00 |
M63 x 1.5 |
10.00 |
48.20 |
35 - 48 |
M 70 |
74.00 |
82.00 |
M70 x 1.5 |
15.00 |
54.00 |
40 - 53 |
M 75 |
79.00 |
87.00 |
M75 x 1.5 |
15.00 |
64.00 |
48 - 63 |
M 80 |
85.00 |
93.50 |
M80 x 1.5 |
15.00 |
69.00 |
53 - 68 |
M 90 |
95.00 |
103.00 |
M90 x 1.5 |
20.00 |
76.00 |
60 - 75 |
