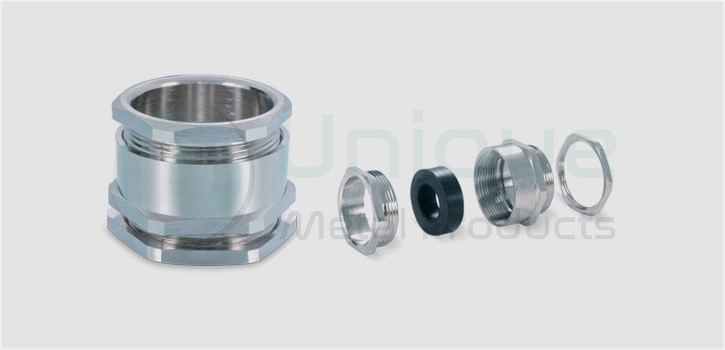

PG Cable Gland (IP-65 Protection)
These Glands Are Used Where Protection Against Dust, Water, Strain & Vibration Is Required. This Is Also Called As Liquid Tight Glands. These Glands Are Used Specially In Measuring & Controlling Instruments, Machineries, System Manufacturing, Panels, etc.
Size |
20 mm to 90 mm S & L |
|---|---|
Standard |
EN 50262 : 1999 |
Application |
For indoor or outdoor use with all types of SWA Cable |
Function |
Provide for Environmental Seal in the Cable Outer Sheath. Also provide mechanical cable retention & electrical continuity. |
Material |
Brass BS 2874 CZ121 Pb3 |
Optional Threads |
METRIC, NPT, BSP, PG or as specified |
Finish |
Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temperature |
Standard seals -200 to +800 C |
Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement |
Technical Data
Size |
A |
B |
C |
D |
E |
F |
G |
|---|---|---|---|---|---|---|---|
PG-7 |
14.00 |
15.50 |
20.50 |
PG-7 |
10.00 |
5.00 |
150 |
PG-9 |
18.00 |
20.00 |
23.50 |
PG-9 |
12.50 |
6.00 |
150 |
PG-11 |
20.00 |
22.00 |
26.50 |
PG-11 |
15.00 |
6.50 |
150 |
PG-13 |
23.00 |
25.00 |
27.00 |
PG-13 |
16.75 |
7.10 |
150 |
PG-16 |
25.00 |
27.80 |
28.00 |
PG-16 |
18.50 |
6.50 |
150 |
PG-21 |
31.00 |
34.00 |
31.00 |
PG-21 |
24.10 |
7.10 |
150 |
PG-29 |
41.50 |
45.20 |
34.00 |
PG-29 |
32.10 |
8.50 |
150 |
PG-36 |
51.00 |
56.50 |
40.00 |
PG-36 |
43.00 |
10.00 |
150 |
PG-42 |
58.50 |
63.75 |
43.00 |
PG-42 |
47.50 |
10.00 |
150 |
PG-48 |
64.00 |
70.50 |
47.00 |
PG-48 |
52.25 |
10.00 |
150 |
