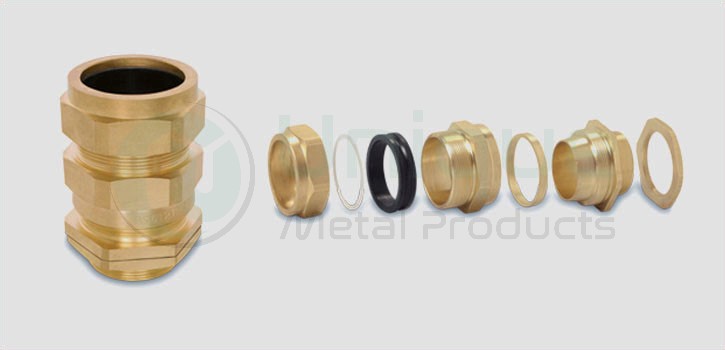

CW Type Cable Gland
Size |
20 mm to 90 mm S & L |
|---|---|
Standard |
EN 50262 : 1999 |
Application |
For indoor or outdoor use with all types of SWA Cable |
Function |
Provide for Environmental Seal in the Cable Outer Sheath,. Also provide mechanical cable retention & electrical continuity. |
Material |
Brass BS 2874 CZ121 Pb3 |
Optional Threads |
METRIC, NPT, BSP, PG or as specified |
Finish |
Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temperature |
Standard seals -200 to +800 C |
Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, REducers, Adaptors, etc. as per the requirement |
Technical Data
Size |
Thread Size 'C' |
Minimum Length of Thread 'D' |
Cable Range |
||
|---|---|---|---|---|---|
MM |
INCH |
MAX 'A' |
MAX 'B' |
||
CW 20S |
20 |
3/4 |
10 |
11.80 |
17.80 |
CW 20L |
20 |
3/4 |
10 |
14.00 |
20.80 |
CW 25S |
25 |
1 |
10 |
18.00 |
24.00 |
CW 25L |
25 |
1 |
10 |
20.30 |
27.40 |
CW 32S |
32 |
1.1/4 |
10 |
24.50 |
31.00 |
CW 32L |
32 |
1.1/4 |
10 |
26.50 |
34.20 |
CW 40S |
40 |
1.1/2 |
13 |
30.40 |
38.50 |
CW 40L |
40 |
1.1/2 |
13 |
33.20 |
41.00 |
CW 50S |
50 |
2 |
13 |
40.00 |
47.00 |
CW 50L |
50 |
2 |
13 |
44.00 |
53.50 |
CW 63S |
63 |
2.1/2 |
14 |
50.00 |
59.00 |
CW 63L |
63 |
2.1/2 |
13.50 |
56.00 |
66.00 |
CW 75S |
75 |
3 |
15 |
63.50 |
73.00 |
CW 75L |
75 |
3 |
15 |
69.00 |
79.00 |
