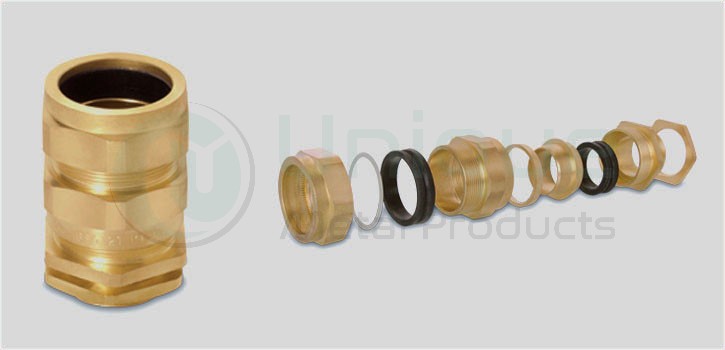

E1W Type Cable Gland
Size |
20 mm to 90 mm S & L |
|---|---|
Standard |
EN 50262 : 1999 |
Application |
For indoor or outdoor use with all types of SWA Cable |
Function |
Provide for Environmental Seal in the Cable Outer sheath. Also, provide mechanical cable retention & electrical continuity |
Material |
Brass BS 2874 CZ121 Pb3 |
Optional Threads |
METRIC, NPT, BSP, PG or as specified |
Finish |
Brass Finish, Nickel Finish, Chrome Finish or as specified |
Operating Temperature |
Standard seals -200 C to +800 C |
Accessories |
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement |
Technical Data
Size |
Thread |
Length |
A |
B |
A/F |
A/C |
|---|---|---|---|---|---|---|
20S |
M20 |
15.00 |
12.00 |
16.00 |
22.20 |
24.20 |
20L |
M20 |
15.00 |
14.00 |
20.50 |
27.00 |
29.50 |
20/16 |
M20 |
15.00 |
9.00 |
14.00 |
22.20 |
24.20 |
25S |
M25 |
15.00 |
18.50 |
24.50 |
33.50 |
37.50 |
25L |
M25 |
15.00 |
20.50 |
27.50 |
36.00 |
40.00 |
32S |
M32 |
10.40 |
24.30 |
34.00 |
43.00 |
48.50 |
32L |
M32 |
15.00 |
26.27 |
34.20 |
43.50 |
48.50 |
40S |
M40 |
15.00 |
29.50 |
41.50 |
52.00 |
58.00 |
40L |
M40 |
15.00 |
33.00 |
41.50 |
52.00 |
58.00 |
50S |
M50 |
15.00 |
38.50 |
47.00 |
59.00 |
65.50 |
50L |
M50 |
15.00 |
44.30 |
53.20 |
64.20 |
71.50 |
63S |
M63 |
20.00 |
50.20 |
62.50 |
73.50 |
81.50 |
63L |
M63 |
20.00 |
56.20 |
65.50 |
79.50 |
89.00 |
75S |
M75 |
20.00 |
62.00 |
74.00 |
87.00 |
97.00 |
75L |
M75 |
20.00 |
68.00 |
78.20 |
97.00 |
108.00 |
90L |
M90 |
18.50 |
80.00 |
91.00 |
103.50 |
114.50 |
