Description
Brass compression fittings are a type of plumbing fitting that is used to join two pipes or tubes together. They consist of three main components: a compression nut, a compression ring, and a body that houses the pipe or tube being connected. The compression nut is typically hexagonal in shape and is used to tighten the compression ring against the pipe or tube connected. A compression ring also known as a ferrule is a small, tapered ring that fits around the pipe or tube and creates a seal when compressed. Body of the fitting is typically cylindrical and is designed to house the pipe or tube being connected.

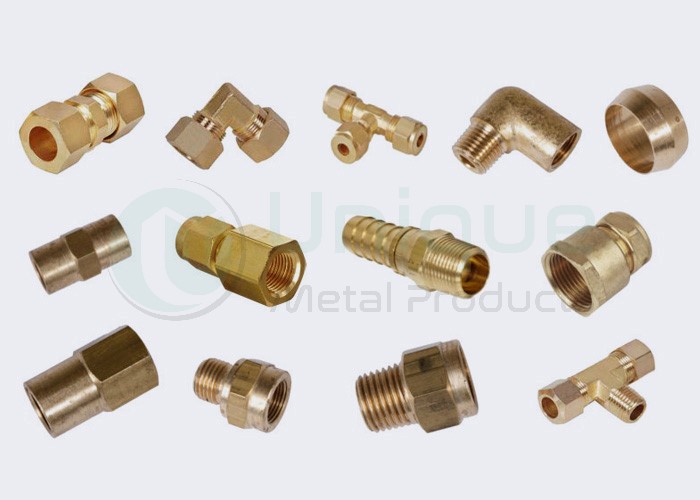

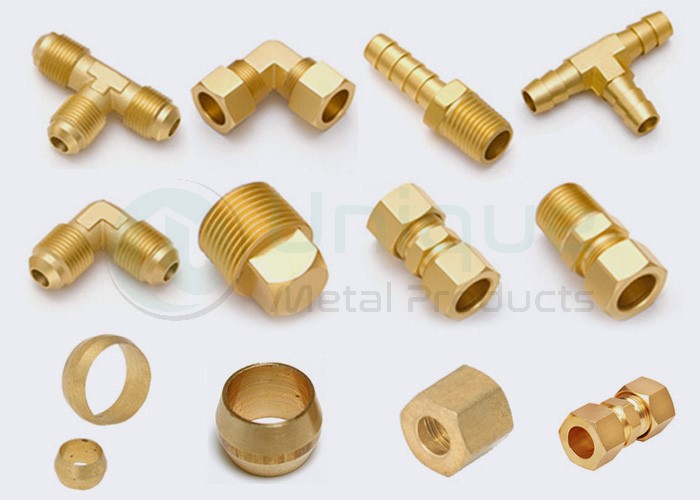

Types of Compression Fittings : | » Elbow Fittings » Brass Olive Union » Reducing Elbow » Union Elbow » Compression Nuts » Compression Adaptor |
» Union Fittings » Brass Olive Nut » Brass Union Joint » Compression Tees » Bulkhead Union » Brass Branch Tee |
» Compression Olives » Brass Four Way » Brass Olive Fittings » Brass Sleeves » Brass P U Connector » Compression Elbows |
Material : | » Free Cutting Brass IS 319 Type (I) or Free Cutting Brass as per BS 249 Type (I) or » High Grade Free Cutting Brass » CDA 360 Brass, CZ-360 High Grade Brass » Any Special Brass Material Composition as per customer requirements. |
||
Threads : | » ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads » Any threads as per client specification. |
||
Length / Size : | » Sizes available from 1/4 3/8 1/2 5/8 3/4 5/16 7/8 » As per Custom Designs and requirements. |
||
Finish & Coating : | Natural, Nickle Plated, Tin Plated or any coating as per customer specification. |
